Quartz Slab Plant Design

To correctly design a quartz slab plant, various commercial and technical variables need to be defined. Customer and supplier must carry out a thorough joint analysis during the configuration phase in order to optimize the process and adapt the layout and the equipment to the customer's specific requirements.
Some of the key questions to answer:

  • What is the yearly production goal (m²/y)?
  • Which design are you manufacturing (Super White, Single color, Veins, Multicolors, Special designs)?
  • What is the expected average lot size (slabs/order)?
  • Which level of automation is required (Fully automatic, Semiautomatic, Manual)? This is a very important question because VEEGOO provides automatic production lines only.
  • What are the desired levels of quality and repeatability?
  • Will the line be installed in a new building? If not, could the existing building impose limitations on design and layout?

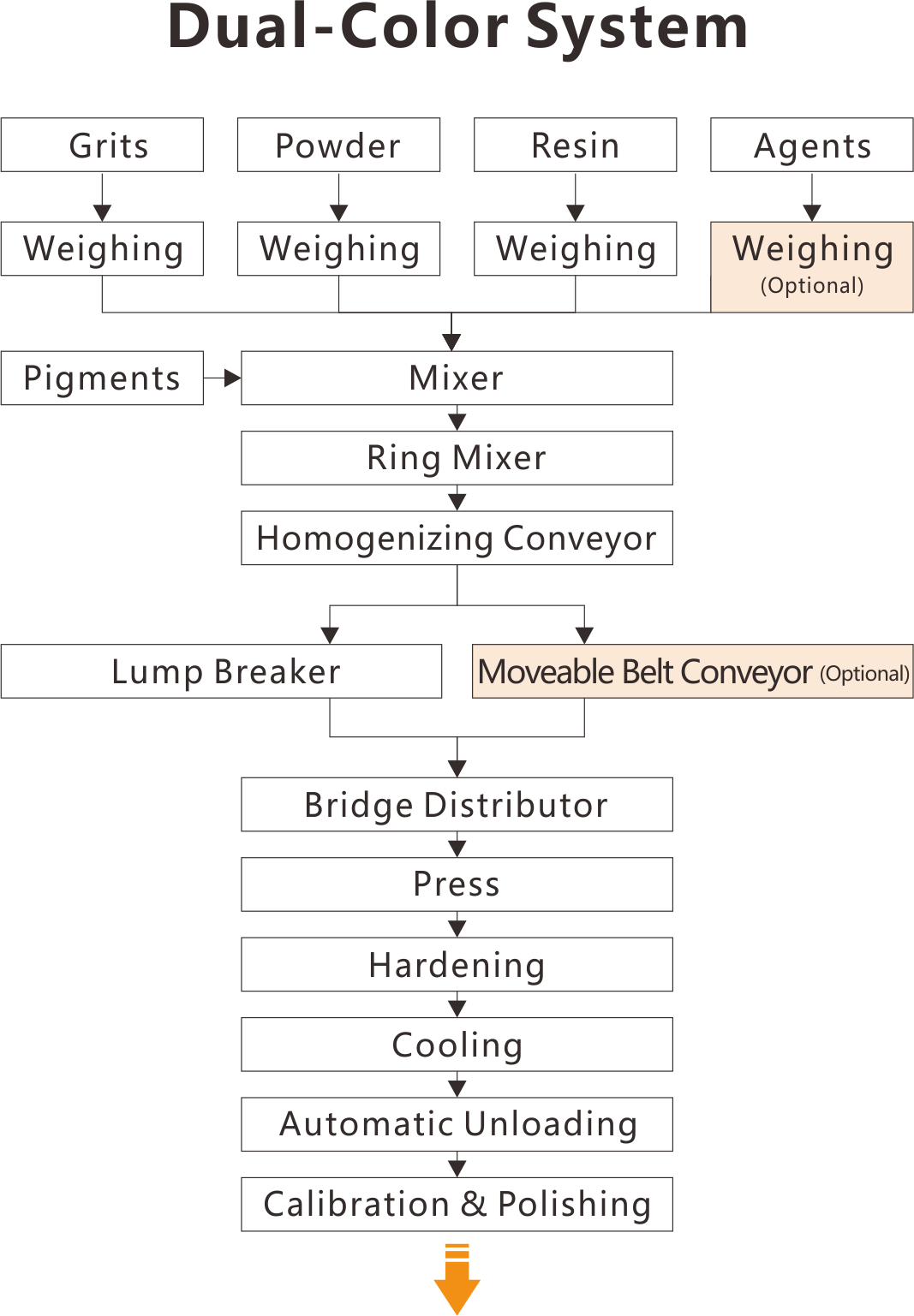

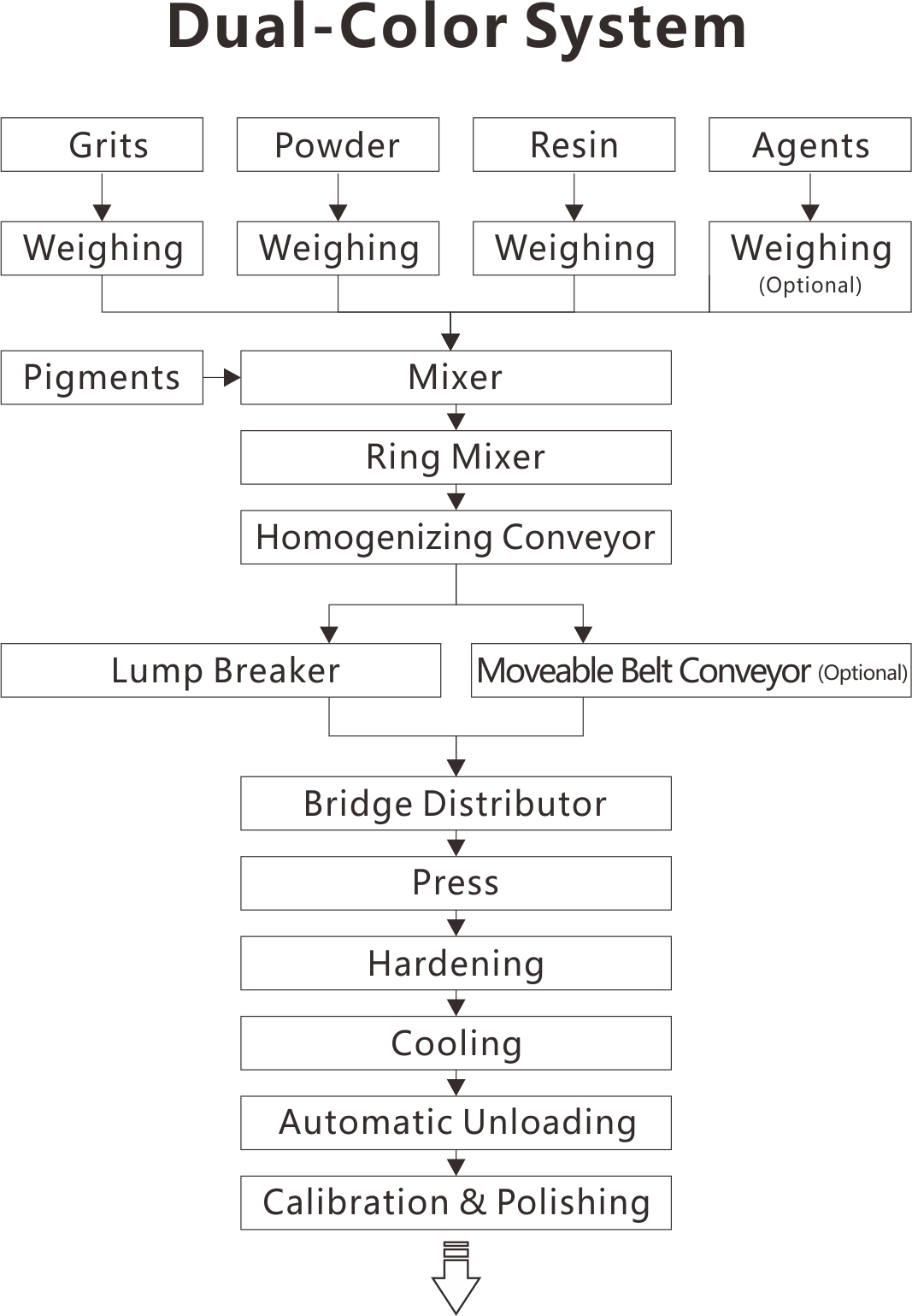

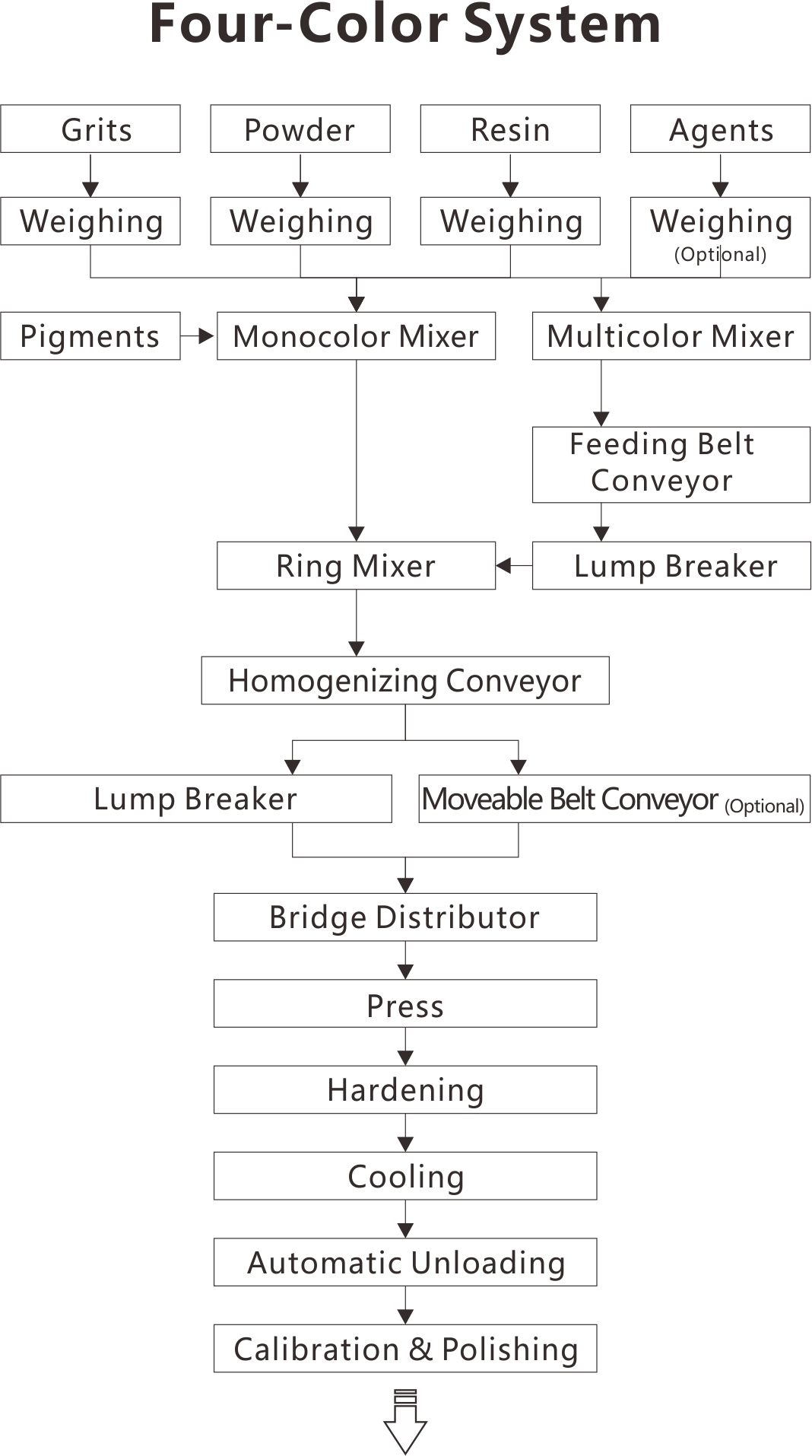

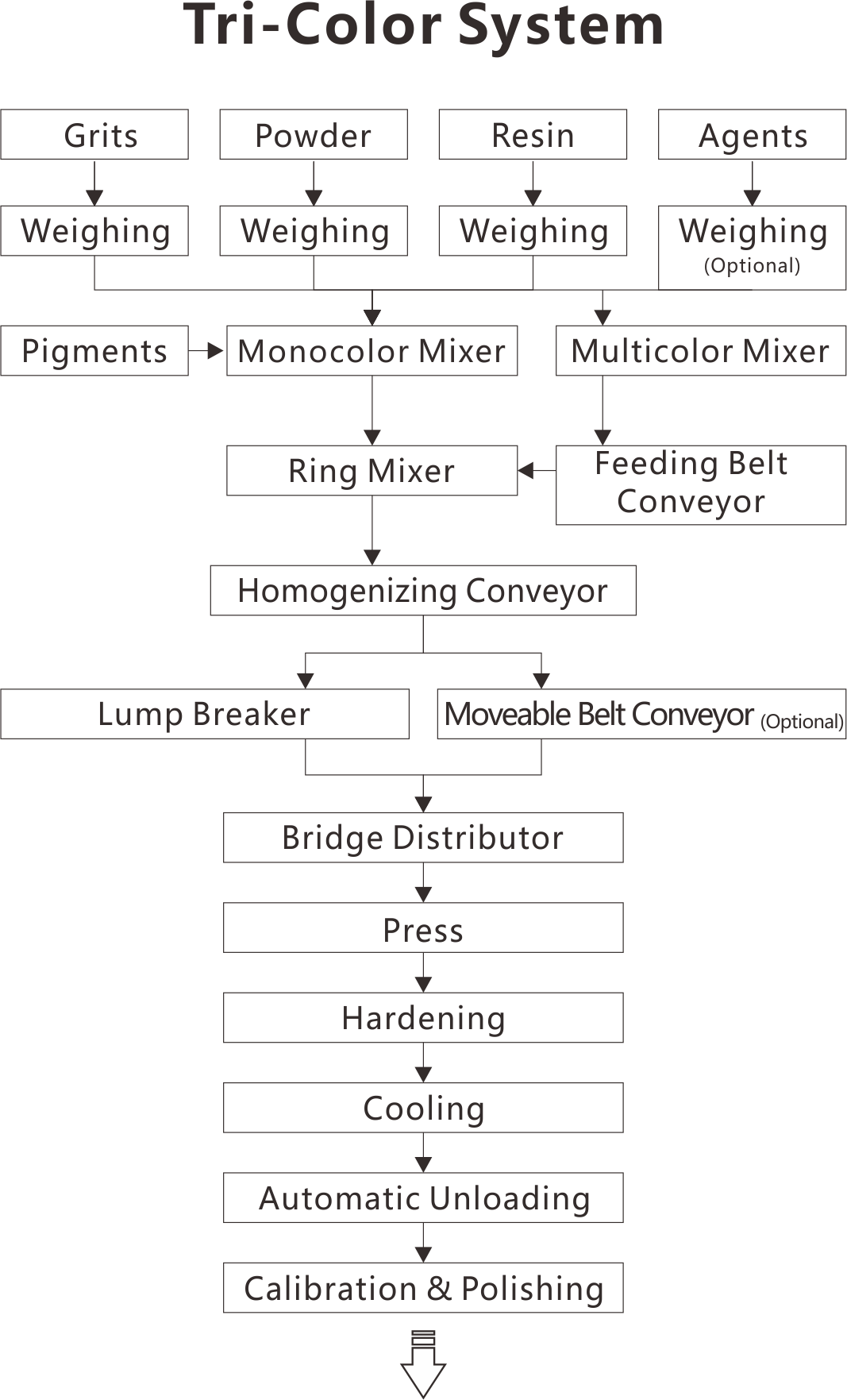

The following block diagrams illustrate the three most common VEEGOO lines.

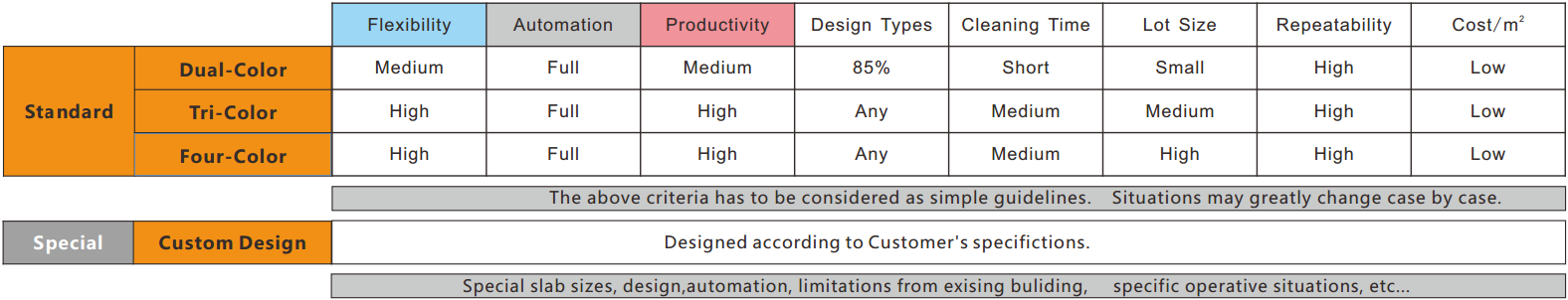

Quartz Plants Classes


Buildings and Layouts

"New or existing?" That is the question. New buildings offer the opportunity to free the imagination in search of the best possible solution without any constraints. In such cases, it is possible to adopt left-to-right or right-to-left material flow, together with various layout configurations ("I", Parallel"I", "L", "C", etc.) to optimize operations and minimize floor space requirements.
Existing buildings on the other hand, can occasionally impose limitations on an optimal design.
In such cases, the net height under the crane hook and the possibility of digging specific areas of the building are key factors.

In a nutshell, an optimal design is one that optimizes material flow, provides special by-passes for processing specific designs, and minimizes floor space requirements while preserving ergonomics, safety, and efficiency.

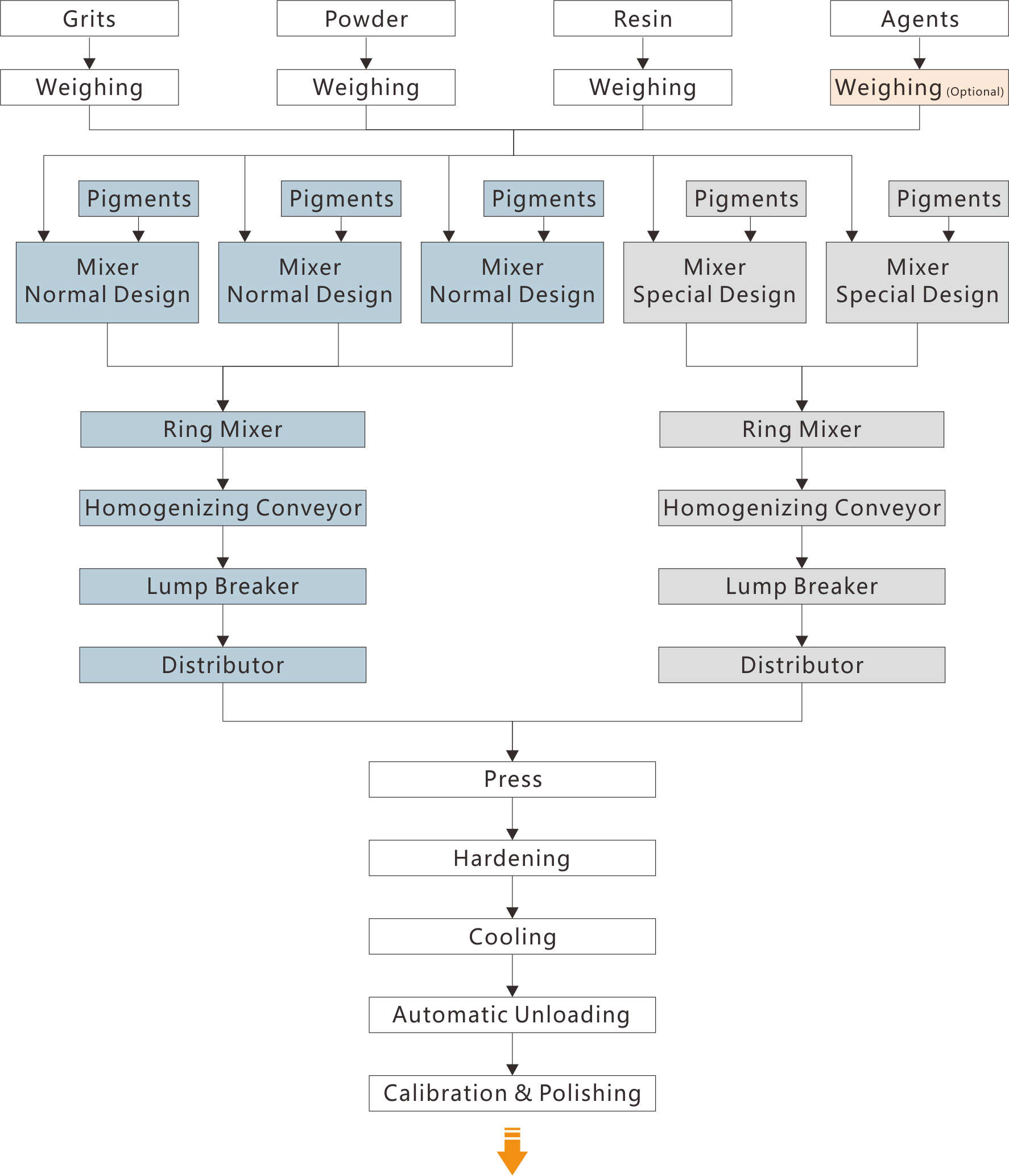

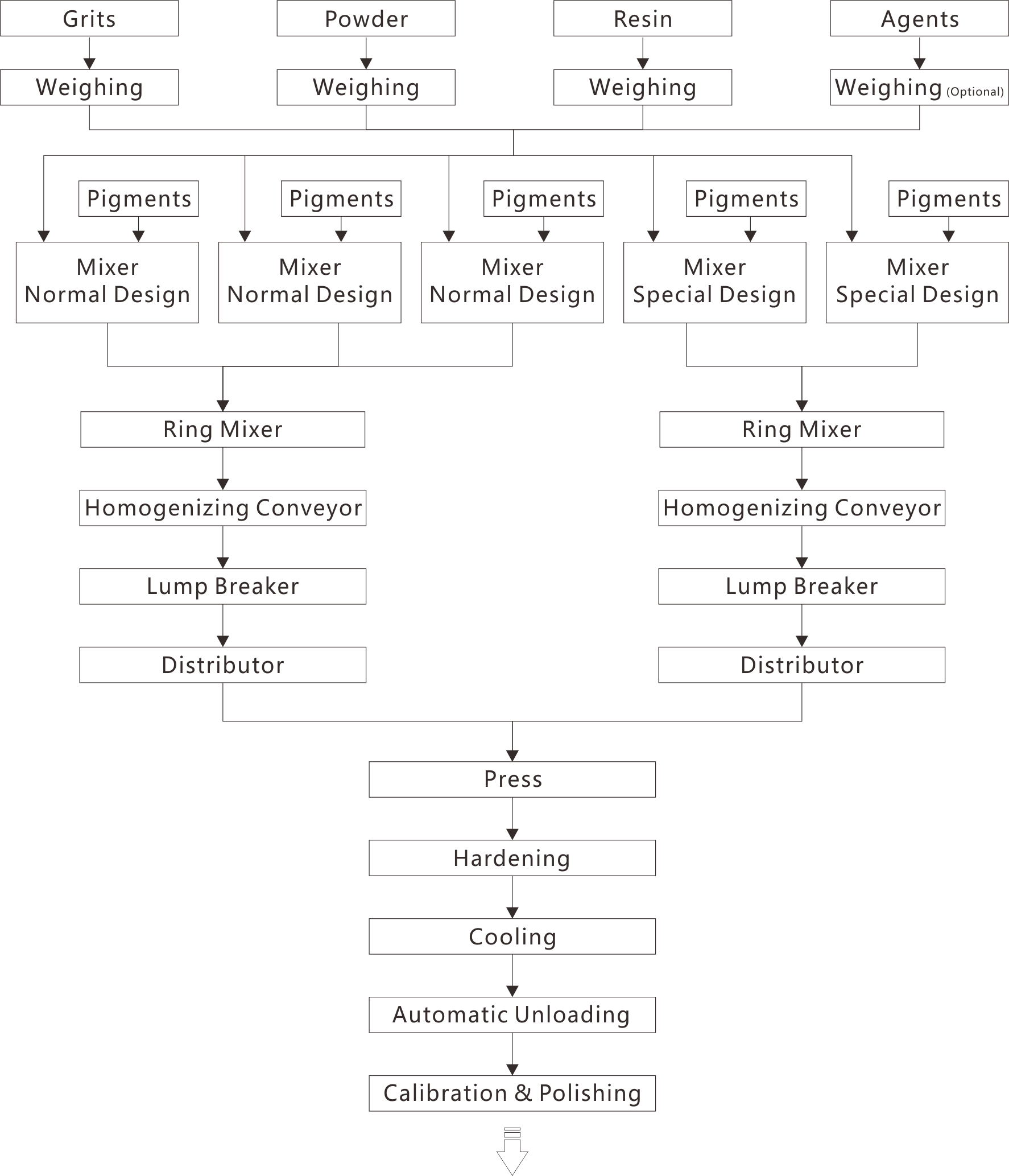

"3+2" Dual System

If you want to produce normal design slabs, and at the same time, produce special design slabs, such as calacatta, we suggest you to choose this “3+2” configuration.


parallax background

What can you make with a VEEGOO line?

Virtually anything. It is possible to produce any slab design of the highest possible quality, excellent reproducibility,
extreme reliability, all at very low production costs, which serve to ensure a good return on investment.





Control

Quartz lines are a complex assembly of customary and well-established technologies. By using proper designs, the correct choice of materials, generous thickness levels, adequate components, professional planning, mechanization, and proper assembly and installation processes, these plants are highly reliable and assure a prolonged Mean Time Between Failures (MTBF). At VEEGOO, we use Chinese components only if they meet our quality standards. Otherwise, we go for imported, high-class components from providers in Europe, Japan, Taiwan, or Korea.

Quartz Smart Management System

By integrating ERP and whole line control system, Veegoo Quartz Smart Management System can automatically collect data and information
from whole line control system, ERP carries out smart analysis, in order to achieve cost accounting, optimal production, production management
and other functions.

* Cost accounting: employee wage, water & electricity cost, raw material cost, and abrasive cost.
* Optimal production: optimal parameter, optimal formulation.
* Production management: lack of material remind, output statistics, quality grading.
* Remote update: PLC control to remote update through internet.
* Monitor production: Mobile APP monitor production output and machine running status.

Production Management System


Data Acquisition


ERP Smart Analyisis

Cost
Accounting

Optimal
Production

Production
Management

Employee Wage
Water & Electricity Cost
Raw Material Cost
Abrasive Cost

Optimal Parameter
Optimal Formulation

Lack of Material Remind
Output Statistics
Quality Grading

Customer

Remote System Monitoring


Network Remote
Update


Mobile Real-time
Check


Running
Monitoring
